TU58 DECtape II Emulator

Verion: April 2014

Purpose

To emulate the Digital Equipment TU58 DECtape II using a microcontroller and a SD-card. The emulator was developed using open soure hardware and software components. The microcontroller is an Arduino Serial (with a AVR ATmega328, http://arduino.cc/en/Main/Hardware). Arduino is a low-cost microcontroller board (20-30$) available from different companies (use a search engine like google or ebay with keywords "serial arduino 328"). The development system is available for free from http://www.arduino.cc
The firmware is an extended version of the TU58 DOS emulator written by William T. Kranz which is still available from http://www.willsworks.net/pdp11/rt11arc.exe
In 2006 I ported this emulator to Widows & DOS with his permission. The missing Modified Radial Serial Protocol (MRSP) support was added in 2011. The Windows/DOS emulator is available form http://www.belatorok.com/computing/pdp11/tu58/tu58.zip . Since no MRSP specification was available, the MRSP-specific code in the firmware is a result of implemetation of a loop in write command found in the source code of Don North's TU58 emulator http://www.slowdeath.com/AK6DN/PDP-11/TU58/tu58em/index.html and reverse engineering of the XXDP ZTUUF0 TU58 test program http://bitsavers.informatik.uni-stuttgart.de/pdf/dec/pdp11/xxdp/fiche_200dpi/0150_CZTUUF0_TU58.pdf
Since the timing of the MRSP protocol at least with the ZTUUF0 test program is critical, the Windows emulator does not work realiably. Possible problems are timing delays due to the FIFOs of the modern serial interfaces, time delays with USB-to-serial converters and/or delays if multiple programs or tasks are running on the PC at the same time.

A logical solution to overcome of the above problems was the development of a standalone device. The firmware of the standalone emulator is available form: http://www.belatorok.com/computing/pdp11/tu58/arduino/tu58.zip

License

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation version 2 of the License (http://www.gnu.org/licenses/gpl.txt). This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

Please send improvements to me.

Usage:

The emulator use disk image files stored on the SD-card. 100 disk image files are selectable with the keyboard of the emulator. The file names have the following format:
TU58-%%.dsk
%% is a two digit decimal number, range: 00 - 99

To enter the setup menu press the "Menu" key for a second. Selectable parameters:

Baudrate (9600-115200)
Delay (0-255 ms) Protocol (RSP only or RSP/MRSP)
D0 Filename (disk image for unit 0)
D1 Filename (disk image for unit 1)
Write parameters to EEPROM
Exit setup

Press
"Menu" to select the next parameter
Up or down arrows to change the value of the parameter
Enter to exit setup menu.

Using large disk mage files with the TU58 emulator

According to Will Kranz, disk image files larger than the 256k of the TU58 cartrige can be used with the emulator. When used with the dd.sys and ddx.sys device drivers, do not use the squeeze and init commands, since they do not work properly with disk images > 256kBytes (>512 blocks). He foud out however, a method to modify block size of the dd driver and made a dw.sys driver for rl (10 mByte) disk images. The block size is strored at hexadecimal offset 0x2c and 0x2d.

The original dd.sys and ddx.sys drivers have 512 (hex 200) blocks. (offset 0x2c=00, 0x2d=02)
To modify the driver you can use a hex editor to chage the value on 0x2c and 0x2d.
I created device drivers for 10mByte rl compatible (dl:) and 32mByte mscp compatible (du:) disk images.
The name of the 10 mByte rl: compatible device drivers are dw.sys and dwx.sys, and for the 32 mByte sized mscp compatible disk images dv.sys and dvx.sys. The dv.sys, dvx.sys, dw.sys and dwx.sys files can be downloaded on a TU58 disk image file: TU58-dv-and-dw-drivers.dsk
To use the drivers mount the TU58-dv-and-dw-drivers.dsk file using the TU58 emulator, cop the drivers to the system disk, e.g., use the "copy /sys dd0:d*.sys dl:" command, and reboot the system.
If you boot rt11xm you before using the driver you have to load the driver with the load command, e.g., "load dd:". The driver can be unloaded with the unload command. Do not load two or three TU58 drivers at the same time (dd, dv or dw)!

Empty 10 and 32 mByte disk image files are available: 10m-rl.zip
and 32m.zip

http://www.willsworks.net/pdp11/xxdpv2d.tap
Copy xxdp2d.tap to the base directory of a SD card, rename the file to, e.g., TU58-90.dsk
Copy xxdp2d.tap to the base directory of a SD card, rename the file to, e.g., TU58-91.dsk
Select TU58-90.dsk using the buttons as disk image0, and TU58-91.dsk as disk image1. We will use disk image0 to boot XXDP, disk image1 will be used as a test drive, any data on this tape will be overwritten!

Testing the emulator

The Radial Serial Protocol (RSP) specitic code was tested with RT11 V4.0 and 5.3 running on a PDP11/23, PDP11/53 and on different simulated PDP11s on Ersatz 11 (E11).

The Modified Radial Serial Protocol (MRSP) was tested with the XXDP ZTUUF0 test program.

To test MRSP capabilities download a XXDP TU58 tape image from: http://www.willsworks.net/pdp11/xxdpv2d.tap
Copy xxdp2d.tap to the base directory of a SD card, rename the file to, e.g., TU58-90.dsk
Copy xxdp2d.tap to the base directory of a SD card, rename the file to, e.g., TU58-91.dsk
Select TU58-90.dsk using the buttons as disk image0, and TU58-91.dsk as disk image1. We will use disk image0 to boot XXDP, disk image1 will be used as a test drive, any data on this tape will be overwritten! A step-by-step guide is available here: xxdp.txt

Contact Information

Béla Török Email: belatorok.info

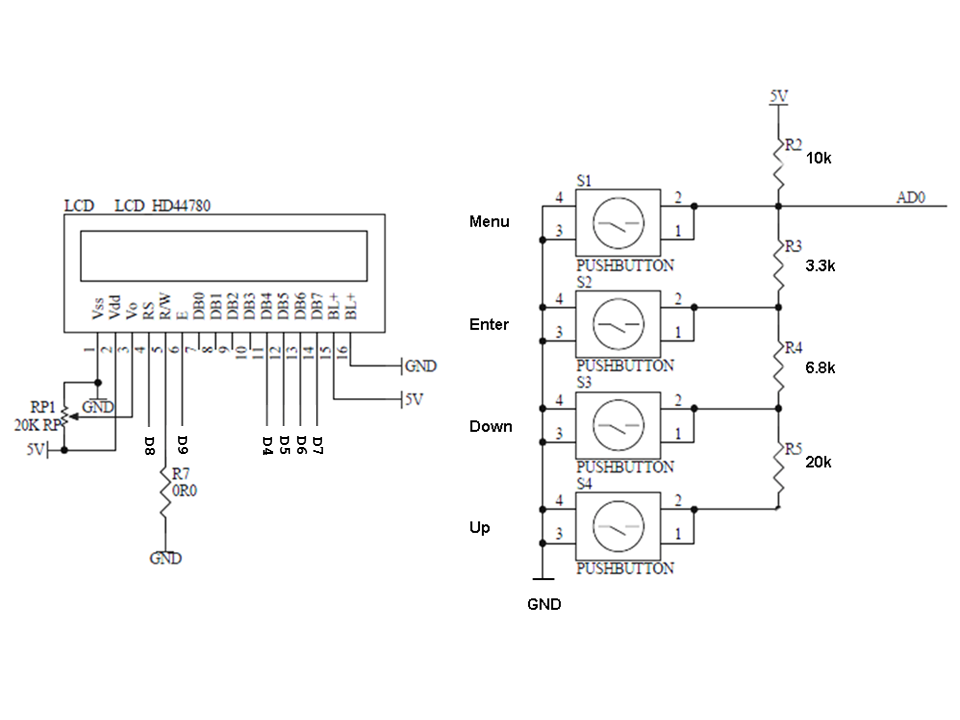

Display & keyboard - circuit diagram.

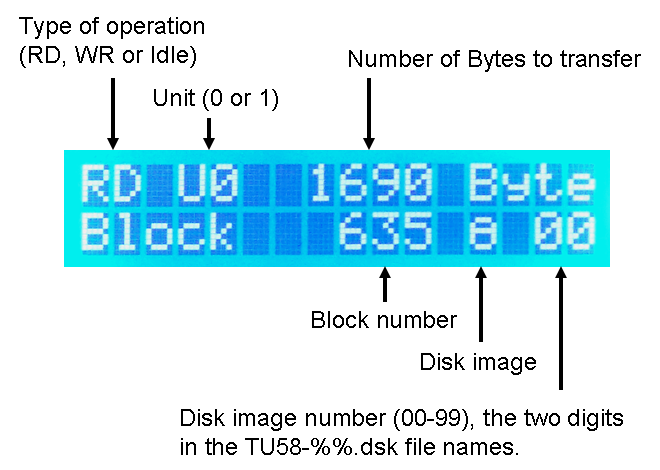

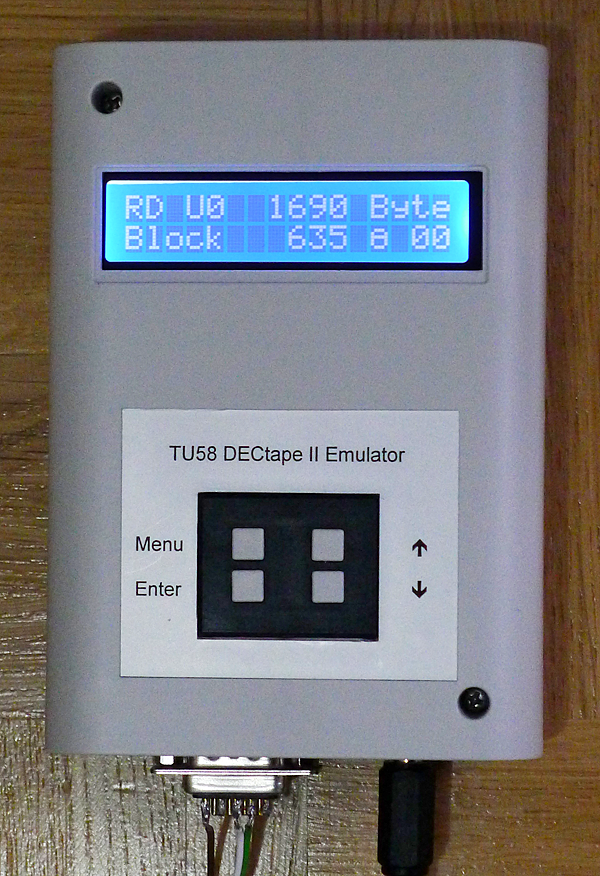

TU58 - Display.

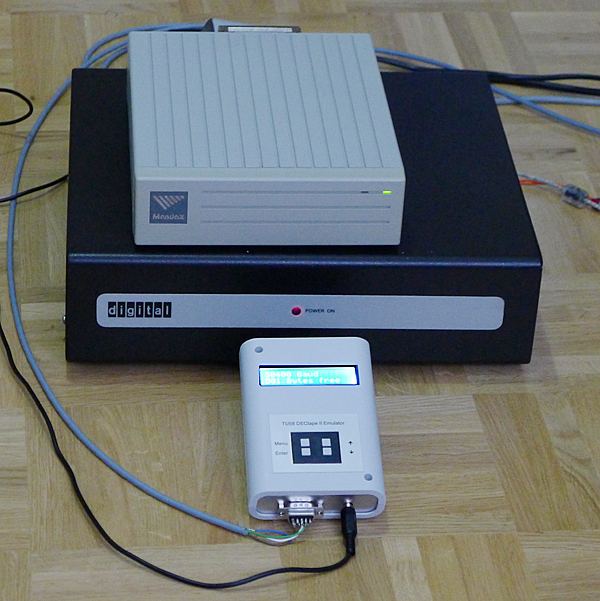

TU58 connected to a PDP11/23.

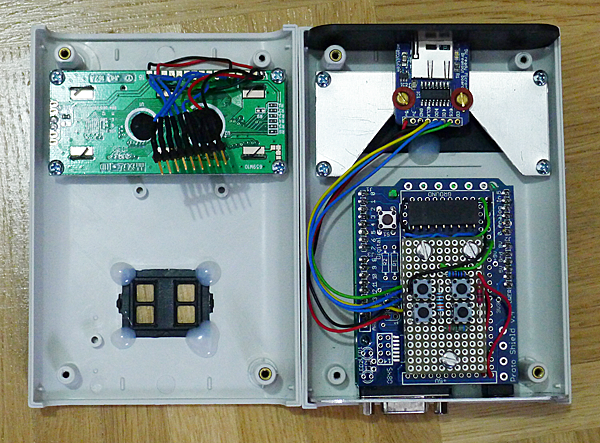

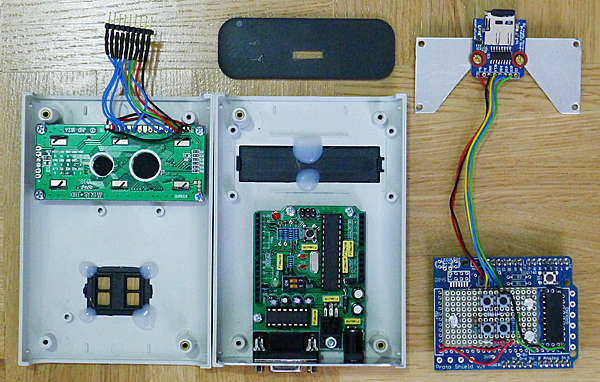

Components (left to right): 16x2 character LCD, Serial Arduino, SD card braekout board with 5 to 3.3 V level shifter and arduino prototyping board with coustom-made keyboard. The keyboard is mounted 6 mm above the prototyping board. The enclosure is and the SD breakout board is available fom http://www.adafruit.com

Development system with Arduino Mega1280, with the LCD shield, SD breakout board with active 5 to 3.3 V level shifter and a TTL-to-RS232 interface.

Arduino Leonardo without LCD. Menu settings and activity monitoring are implemented usig serial emulation via USB interface. The virtual serial port is connected to a VT100 compatible terminal emulator (Settings: 115200 Baud, 8 bit, no parity, one stop bit). A TTL-to-RS232 interface should be attached to the TX and RX lines. Arduino Mega1280 or Mega 2560 can also be used this way.

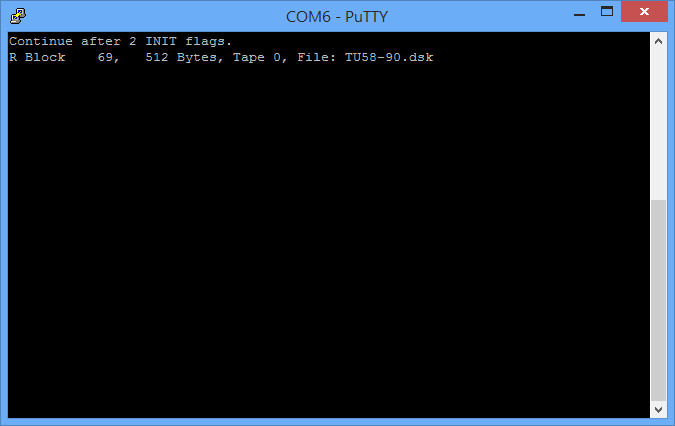

Monitoring TU58 atcivity using the serial interface, connected to a VT100 compatible terminal emulator (putty).

Menu settings using the serial interface, connected to a VT100 compatible terminal emulator (putty).

Circuit diagrams without SD card connections:
Circuit diagram for Arduino Leonardo
Circuit diagram for Arduino Mega1280 & Mega2560
SD card connections are documented in the header of the tu58.ino file.
